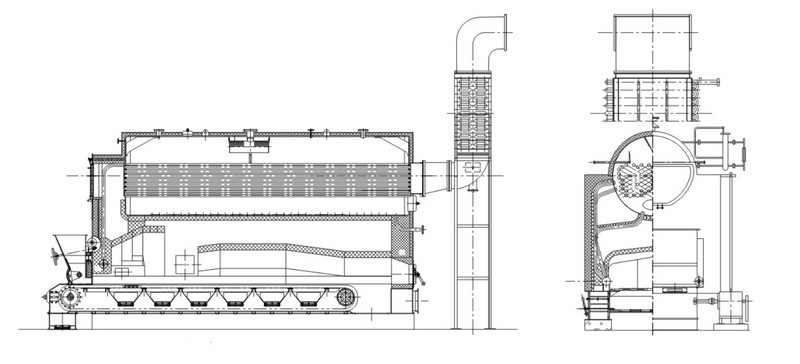

DZL series packaged boiler which is a vertical type with a single drum belongs to the traveling grate boiler. lt is a high-efficiency and environment-friendly product that could easily burn shaped biomass fuel or both pure and mixed coal with its economizer in the rear that discharges the slag which could be used as fertile to agriculture.
Send InquiryEquipped with the forced-and-induced draft fan to ventilation and screw mucking machine to discharge the slag.
| Model | Rated thermal power（t/h/MW） | Working pressure（MPa） | Rated output water temperature（℃） | Return water temperature（℃） | Chimney diameter | Diameter of water supply and return |
| DZL1.4-0.7/95-70-AⅡ | 1.4 | 0.7 | 95 | 70 | φ400 | DN100 |
| DZL2.8-0.7/95/70-AⅡ | 2.8 | 0.7 | 95 | 70 | φ600 | DN125 |
