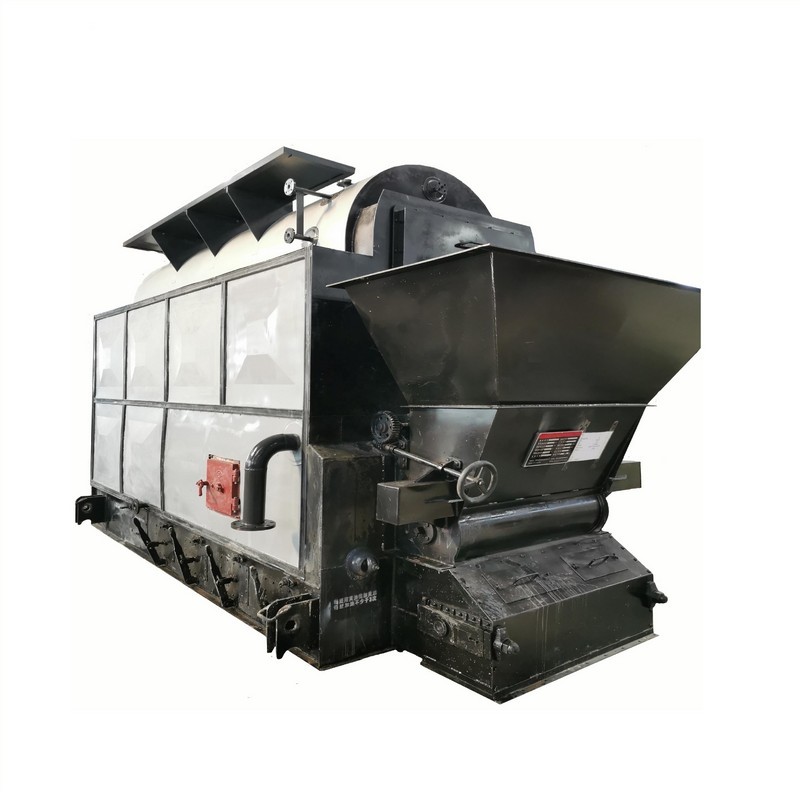

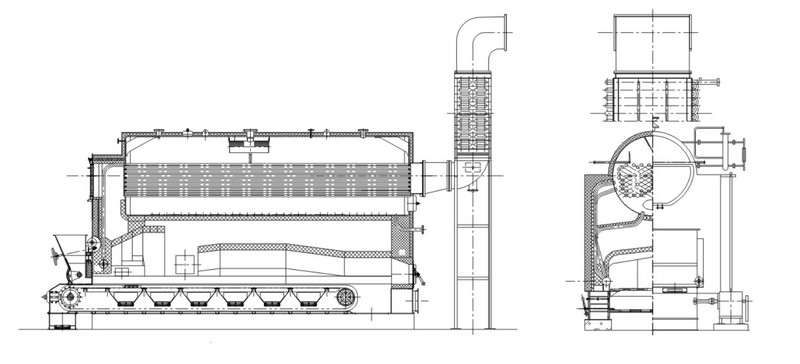

DZL series packaged boiler which is a vertical type with a single drum belongs to the traveling grate boiler. lt is a high-efficiency and environment-friendly product that could easily burn shaped biomass fuel or both pure and mixed coal with its economizer in the rear that discharges the slag which could be used as fertile to agriculture. Equipped with a forced-and-induced draft fan to ventilation and screw mucking machine to discharge the slag.
Send Inquiry| Model | Rated evaporation | Rated working pressure（MPa） | Rated steam temperature | Thermal efficiency（%） | Chimney diameter | Steam outlet diameter |
| DZL2-1.0-AⅡ | 2 | 1 | 184 | 79 | φ400 | DN80 |
| DZL2-1.25-AⅡ | 2 | 1.25 | 194 | 79 | φ400 | DN80 |
| DZL2-1.6-AⅡ | 2 | 1.57 | 204 | 79 | φ400 | DN80 |
| DZL2-2.5-AⅡ | 2 | 2.45 | 225 | 79 | φ600 | DN80 |
| DZL4-1.25-AⅡ | 4 | 1.25 | 194 | 79 | φ600 | DN100 |
| DZL4-1.6-AⅡ | 4 | 1.57 | 204 | 79 | φ600 | DN100 |
| DZL4-2.5-AⅡ | 4 | 2.45 | 225 | 79 | φ600 | DN100 |
| DZL6-1.25-AⅡ | 6 | 1.25 | 194 | 79 | φ700 | DN125 |
| DZL6-1.60-AⅡ | 6 | 1.6 | 205 | 79 | φ700 | DN125 |
| DZL8-1.25-All | 10 | 1.25 | 194 | 79 | φ800 | DN150 |
| DZL8-1.60-All | 10 | 1.6 | 205 | 79 | φ800 | DN150 |
