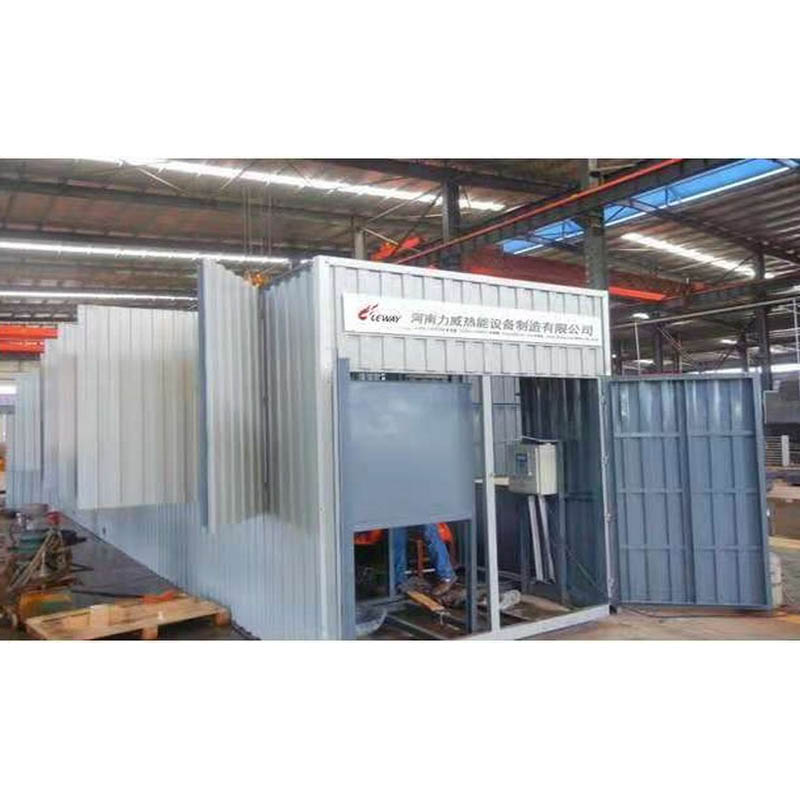

The boiler and supporting auxiliary machines are installed in the container.
Because the boiler is already installed in a container, it is easy to transport.
Installation only needs to connect the gas pipe, water supply pipe, gas outlet pipe and smoke exhaust pipe, which is convenient and quick.
The boiler is easy to disassemble and suitable for multiple installations in different places.
The boiler and supporting auxiliary equipment are selected from domestic advanced equipment to ensure the excellent performance of the overall unit.
The overall unit design size fully considers domestic and foreign transportation requirements and container size, and the transportation cost is low.
The boiler unit can be installed outdoors.
| Container Steam Boiler | ||||||
| MODEL | JWNS0.5-1.0-Y(Q) | JWNS1-1.0-Y(Q) | JWNS1.5-1.0-Y(Q) | JWNS2-1.0-Y(Q) | JWNS3-1.0-Y(Q) | |
| Item | Unit | Technical Parameters | ||||
| Steam capacity | t/h | 0.5 | 1 | 1.5 | 2 | 3 |
| Steam pressure | MPa | 1 | 1 | 1 | 1 | 1 |
| Steam temperature | ℃ | 184 | 184 | 184 | 184 | 184 |
| Thermal efficiency | % | 96 | 96 | 96 | 96 | 96 |
| Main steam valve diameter | DN | 50 | 50 | 65 | 80 | 80 |
| Drain valve diameter | DN | 40 | 40 | 40 | 40 | 40 |
| Gas valve set diameter | DN | 32 | 40 | 40 | 50 | 50 |
| gas pressure | Kpa | 6～8 | 6～8 | 8～10 | 15～30 | 15～30 |
| Gas consumption | Nm3/h | 39.5 | 79.2 | 118.8 | 158.5 | 237.6 |
| Smoke-exhaust temperature | ℃ | ≤80 | ≤80 | ≤80 | ≤80 | ≤80 |
| Chimney diameter | mm | 200 | 300 | 300 | 350 | 400 |
| Total weight | Kg | 6620 | 8450 | 9830 | 10570 | 14390 |
| Shipping dimensions | Length ×width×hight（mm） | 7000×2400×2300 | 7500×2800×2550 | 7800×2900×2600 | 8400×2900×2800 | 9600×3200×3200 |
