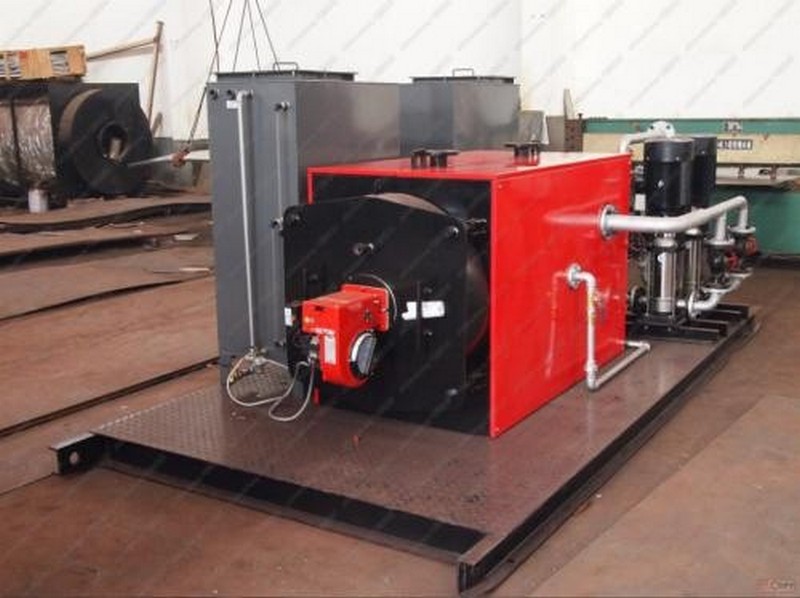

1. The boiler and supporting auxiliary equipment are installed on the overall frame.
2. Because the boiler has been installed on a frame, it is convenient to transport.
3. The installation only needs to connect the gas pipe, the water supply pipe, the air outlet pipe, and the smoke exhaust pipe, which is convenient and quick.
4. The boiler is easy to disassemble, suitable for multiple installations, and use in different places.
5. The boiler and supporting auxiliary equipment adopt domestic advanced equipment to ensure the excellent performance of the overall unit.
6. The overall unit design size fully considers domestic and foreign transportation requirements and container size, and the transportation cost is low.

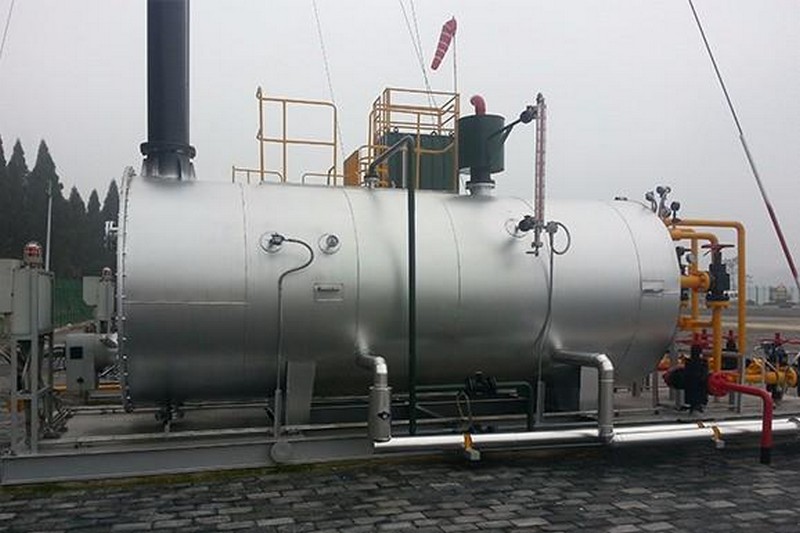

7. The boiler unit can be installed in a simple shed.
| Skid-mounted Steam Boiler | ||||||
| MODEL | QWNS0.5-1.0-Y(Q) | QWNS1-1.0-Y(Q) | QWNS1.5-1.0-Y(Q) | QWNS2-1.0-Y(Q) | QWNS3-1.0-Y(Q) | |
| Item | Unit | Technical Parameters | ||||
| Steam capacity | t/h | 0.5 | 1 | 1.5 | 2 | 3 |
| Steam pressure | MPa | 1 | 1 | 1 | 1 | 1 |
| Steam temperature | ℃ | 184 | 184 | 184 | 184 | 184 |
| Thermal efficiency | % | 96 | 96 | 96 | 96 | 96 |
| Main steam valve diameter | DN | 50 | 50 | 65 | 80 | 80 |
| Drain valve diameter | DN | 40 | 40 | 40 | 40 | 40 |
| Gas valve set diameter | DN | 32 | 40 | 40 | 50 | 50 |
| gas pressure | Kpa | 6～8 | 6～8 | 8～10 | 15～30 | 15～30 |
| Gas consumption | Nm3/h | 39.5 | 79.2 | 118.8 | 158.5 | 237.6 |
| Smoke-exhaust temperature | ℃ | ≤80 | ≤80 | ≤80 | ≤80 | ≤80 |
| Chimney diameter | mm | 200 | 300 | 300 | 350 | 400 |
| Total weight | Kg | 6106 | 7852 | 9228 | 9870 | 13250 |
| Shipping dimensions | Length ×width×hight（mm） | 6000×1800×2300 | 6500×2150×2550 | 6800×2300×2600 | 7400×2300×2800 | 8600×2500×3200 |
