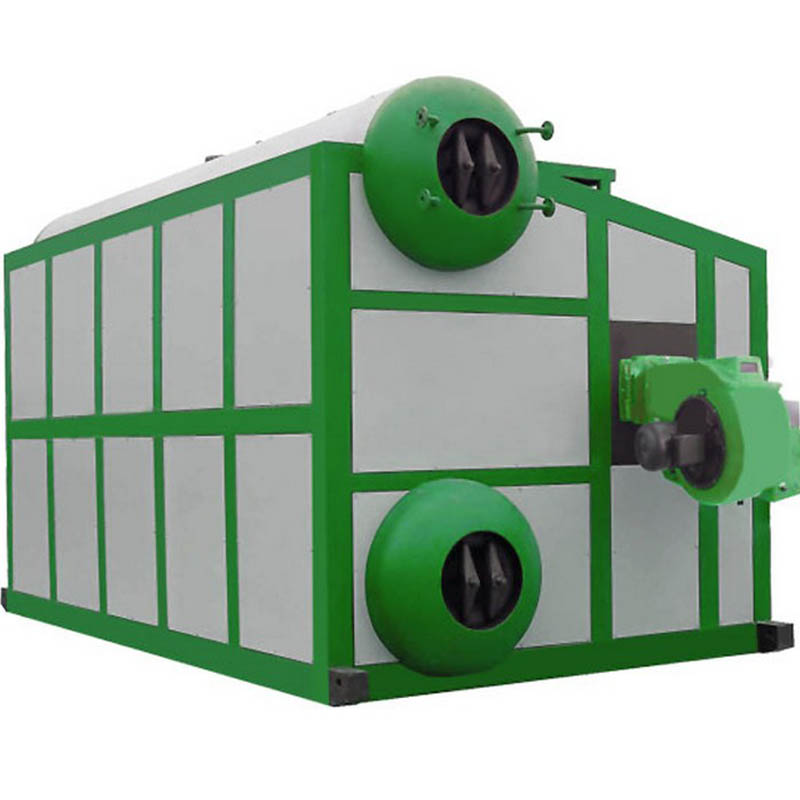

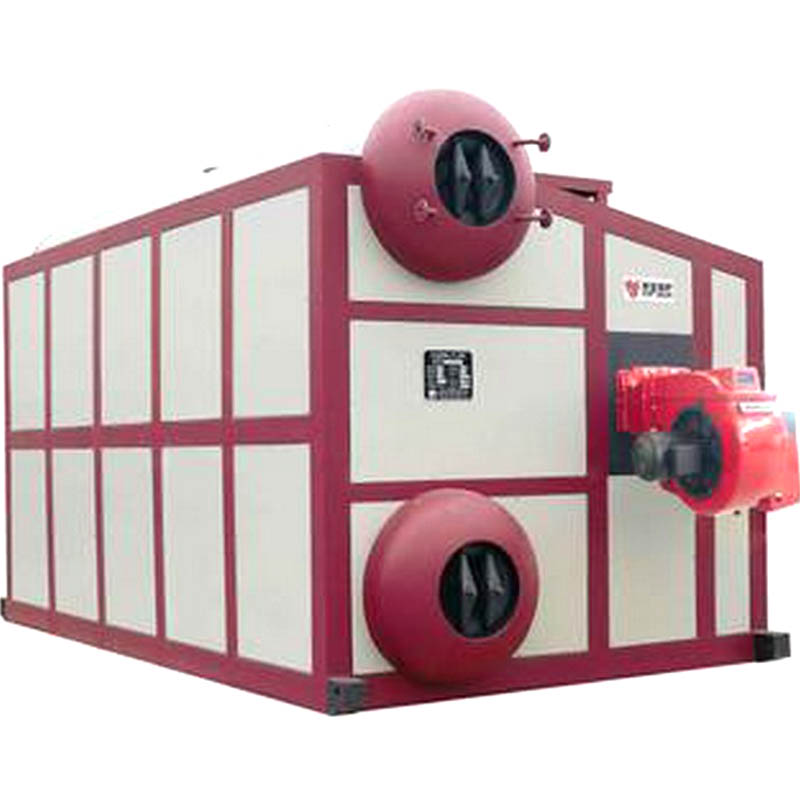

SZS 6 35T H Series Horizontal Water Tube Gas(Oil) Fired Steam Boiler

The water pipe superheated boiler runs safely and reliably. The reasonably arranged heat exchange form has strong adaptability to the fuel of different combustion values of the boiler. The temperature of the superheater pipe wall is easy to control. Under the condition that the superheater system has little resistance, the high working fluid flow rate is high. The superheated pipe is cooled enough, the reasonable flue gas flow rate is avoided, the pipe is prevented from being dusted due to the too low smoke speed, and the convection heat transfer coefficient is not increased due to the excessively high flue gas speed, so that the pipe wall temperature rises.
The unique convection tube bundle structure， reasonable flue gas flow, low back pressure， positive pressure combustion, and split-type energy saver at the tail, reduce the exhaust gas temperature, avoid low-temperature corrosion of the heating surface of the body, and improve thermal efficiency. These boilers are widely used for food plants, papermaking plants, dryer, plastic, fiber, carbon, brewing, heating and air conditioning, and other industries.

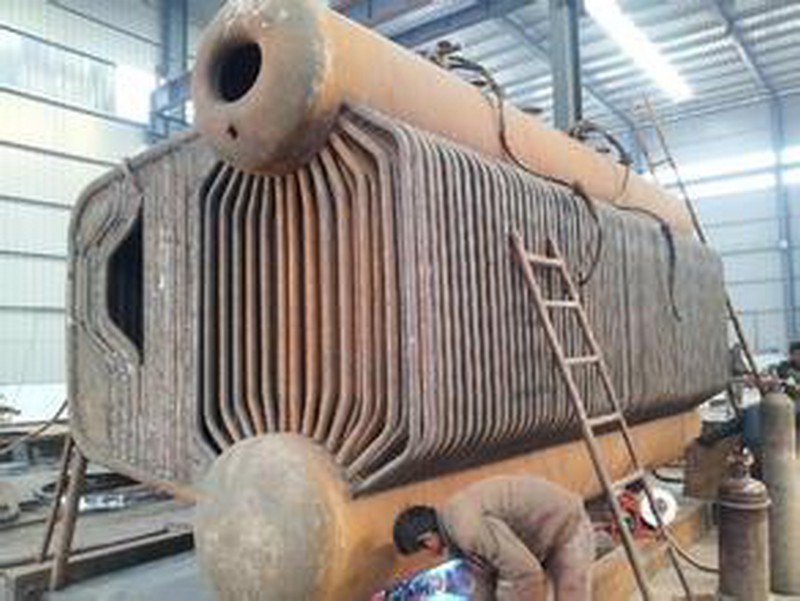

1. This series of products adopts a double-drum “D” type arrangement, compact structure, small footprint, and good flame fullness.

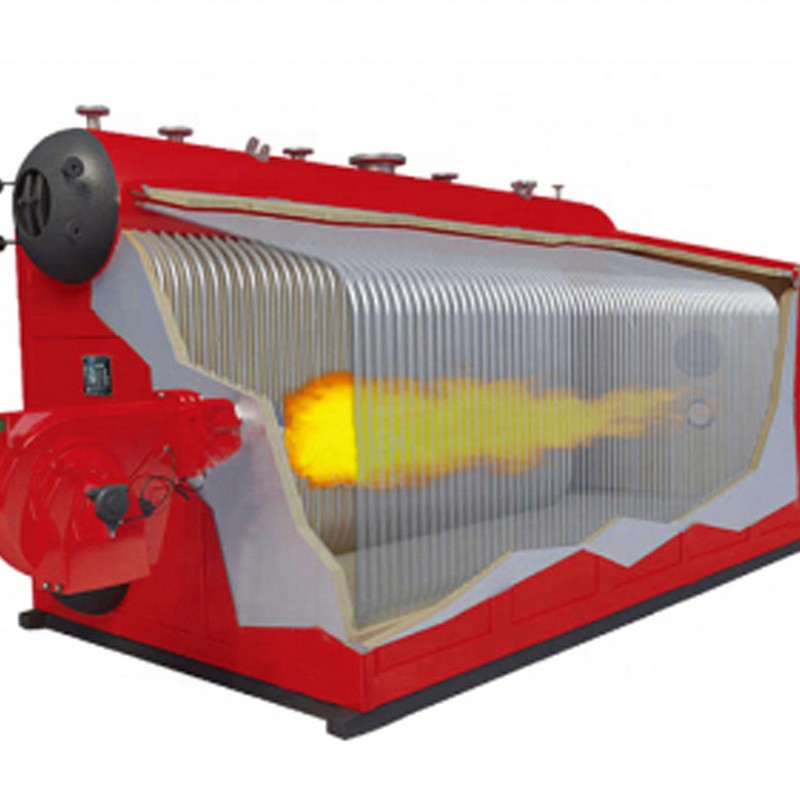

2. The furnace adopts the membrane-type water wall structure, the whole boiler adopts the airtight inner protection plate of the fully enclosed welded structure, and the furnace wall has good sealing performance.
3. The boiler layout has a large heating surface area and is designed with a large enough steam and water space to ensure stable boiler parameters.
4. The flue gas condensation recovery device is arranged at the tail, which can effectively control the exhaust gas temperature and the boiler has high thermal efficiency.
5. High thermal resistance material is used as the thermal insulation layer, and the thermal insulation performance is good. The outer layer of the boiler is made of a pressed guard plate, which is beautiful and beautiful.
6. With a quick-loading structure, the whole boiler is designed on a highly rigid base, which is easy to install and transport.
7. The furnace has inspection holes, which provides great convenience for use and maintenance. The tap of the stove is equipped with an explosion-proof door.
8. Adopt automatic burner, continuous electric adjustment of feed water, high combustion efficiency. And with multiple protection functions, the operation is safe and reliable.
