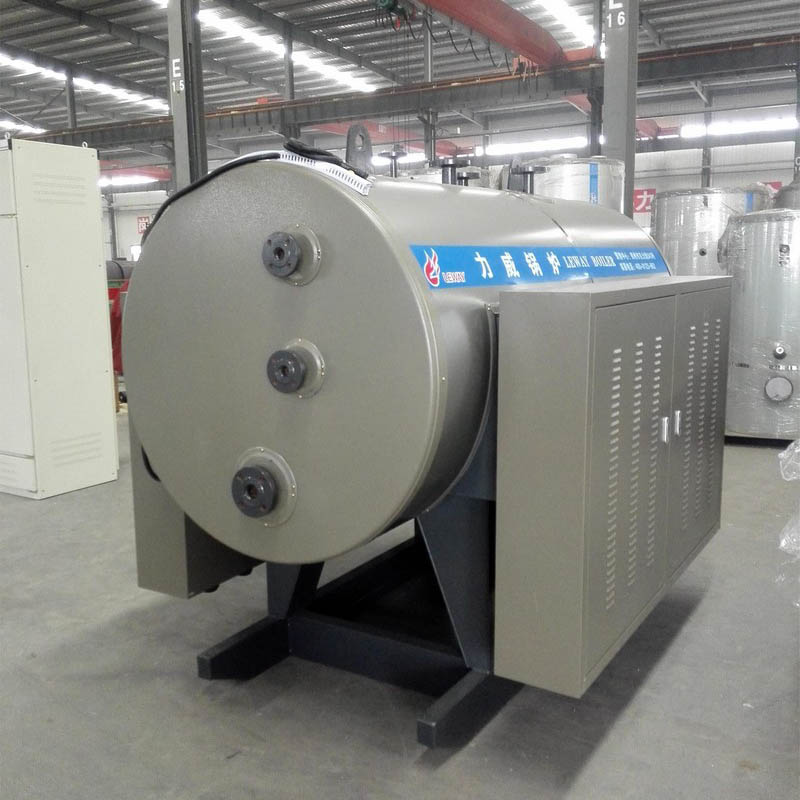

The electric steam boiler is a new electric heating device that converts electricity into heat, and it’s manufactured according to boiler safety supervisory Regulation and the industry standard. the electrical apparatus elements adopt famous brands like Siemens, Schneider, ABB, Chint, and soon, thus eliminating your fear of electricity and electric leakage.
ALL the electrical apparatus elements have the CE and CCC authentication marks, all products by famous enterprises, and manufactured by brand elements appointed by the users.

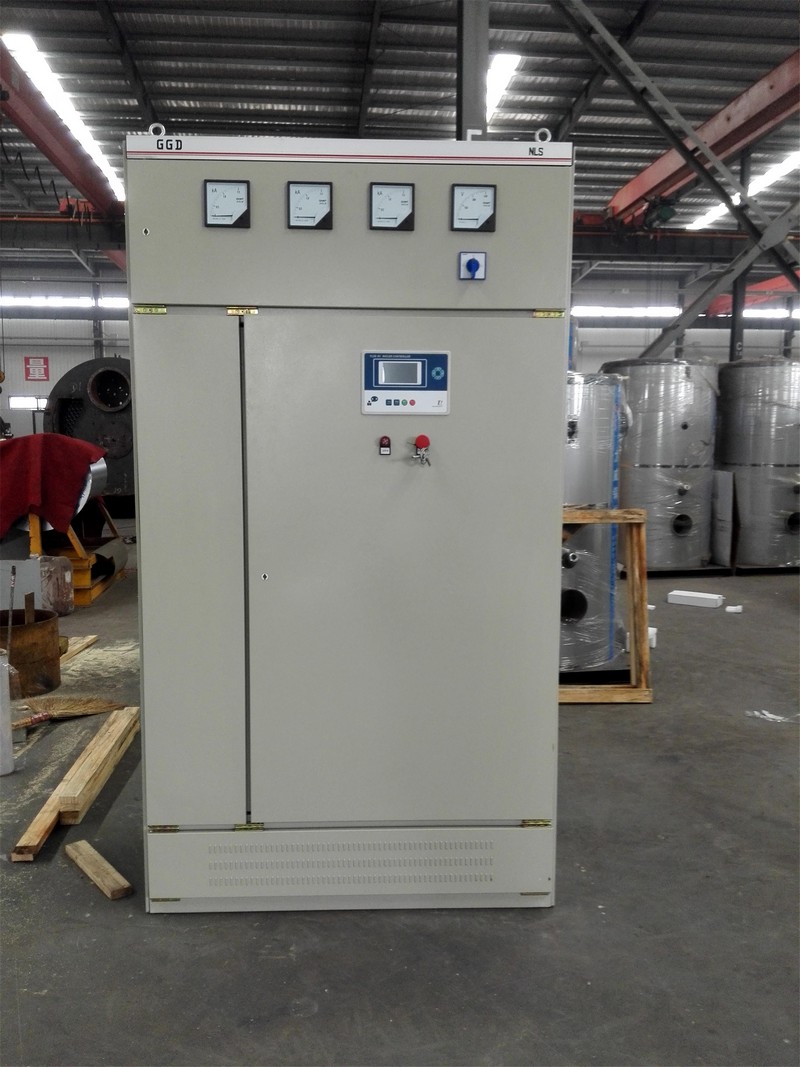

The large-power electric steam boiler adopts the mode that the boiler body and the control cabinet separated, thus avoiding the apparatus elements from being heated and affecting running.
The circuit design is advanced and reasonable, moreover, the circuit is finely manufactured, extremely operated, and maintained. The control cabinet is designed to not only be upwards outgoing, but also downwards outgoing, and is freely chosen by the users.
Multiple copper cores are adopted as the connecting cables, which have the advantages of high insulating grade, excellent heat radiation, and durability.
The electric steam boiler has the safety protection systems like automatic water replenishing, automatic power-off, and alarming under the situations of water shortage,over-heat, over pressure, and creepage protection. and power protection. etc.

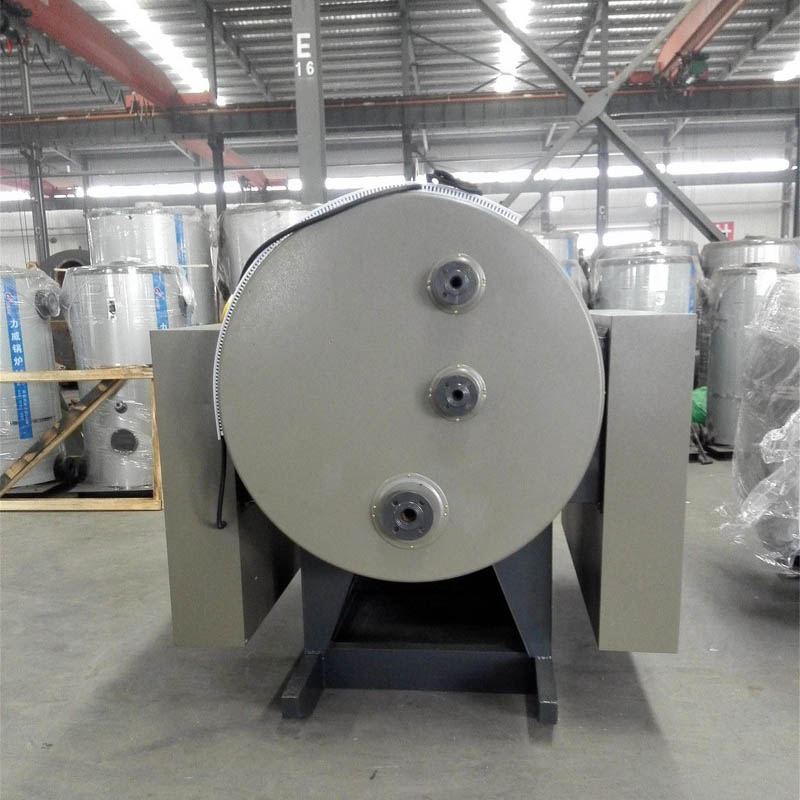

The electric heating tube and the boiler main body are connected by a flange, conveniently mounted and dismounted, also easily exchanged, repaired, and maintained,
imported colorful and single-color touch screen control systems are selected according to the user requirements. full automatic operation， full Chinese operation interface realizes the man-machine conversation and remote operation.
| Item/Unit/Model | WDR0.5 | WDR1 | WDR1.5 | WDR2 | ||
| 1 | -1 | -1 | -1.25 | |||
| Reted Heat Capacity | kg/h | 500 | 1000 | 1050 | 2000 | |
| Working Pressure | Mpa | 1 | 1 | 1 | 1.25 | |
| Output Water Temp. | ℃ | 184 | 25184 | 184 | 194 | |
| Input Water Temp. | ℃ | 20 | ||||
| Thermal Efficiency | % | 98 | ||||
| Water Volume | L | 1250 | 2600 | 2850 | 3770 | |
| Steam Outlet | DN | 50 | 50 | 80 | 80 | |
| water Outlet | DN | 25 | 25 | 40 | 40 | |
| water Inlet | DN | 40 | 40 | 40 | 40 | |
| Drain Valve | DN | 40 | 40 | 2×40 | 2×40 | |
| Heating-Tube | kw/h | 60 | 60 | 60 | 60 | |
| Heating-Tube Unit | kw | 6 | 12 | 18 | 24 | |
| Dimensions | Length | mm | 2400 | 2970 | 3500 | 4274 |
| mm | 1660 | 1860 | 1860 | 1860 | ||
| mm | 1625 | 1830 | 1827 | 1827 | ||
| Base Dimensions | mm | 2000×900 | 2350×1000 | 3000×1000 | 3700×1000 | |
| Transport Weight | kg | 1500 | 2001 | 2500 | 3400 | |
